DiGiYes

Good Condition

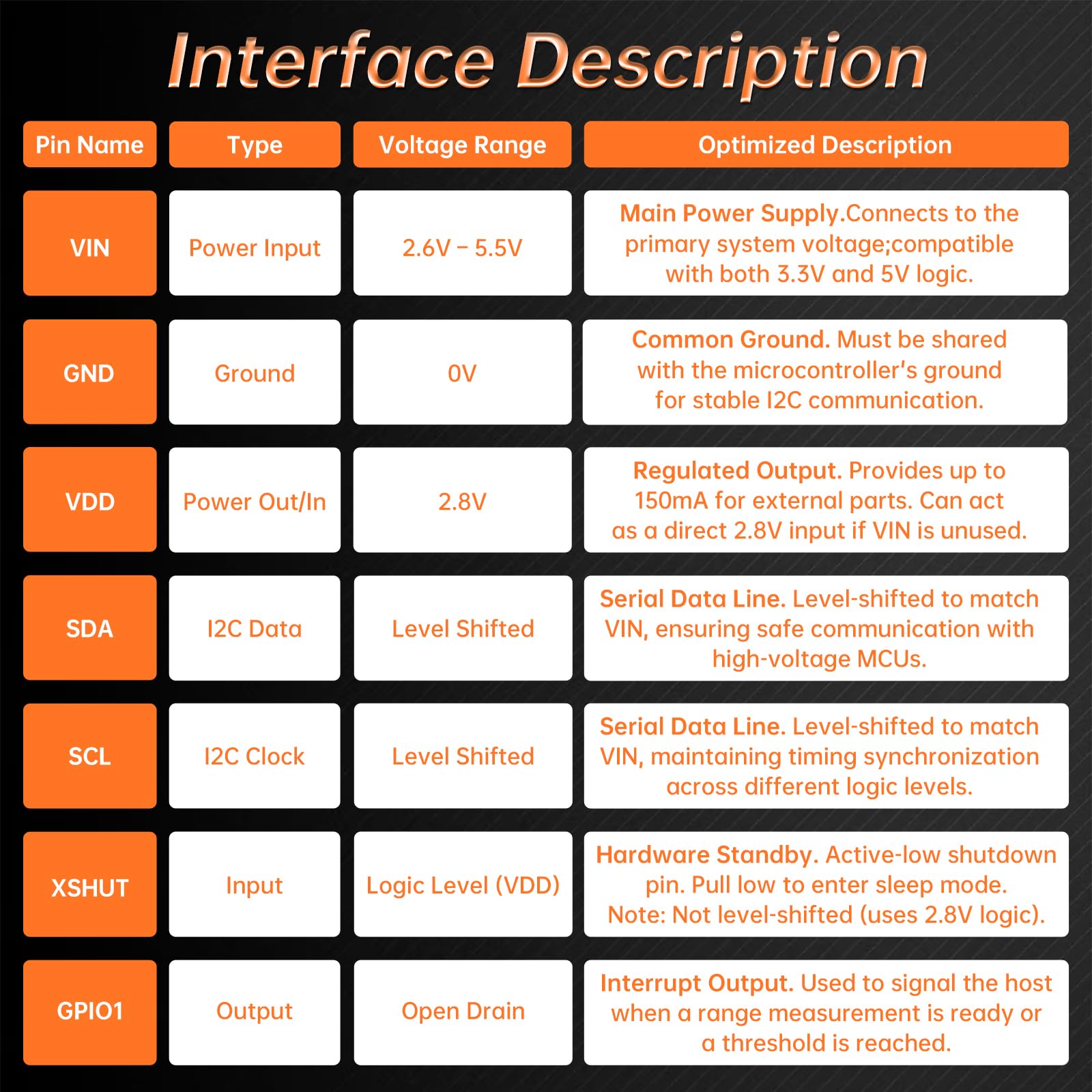

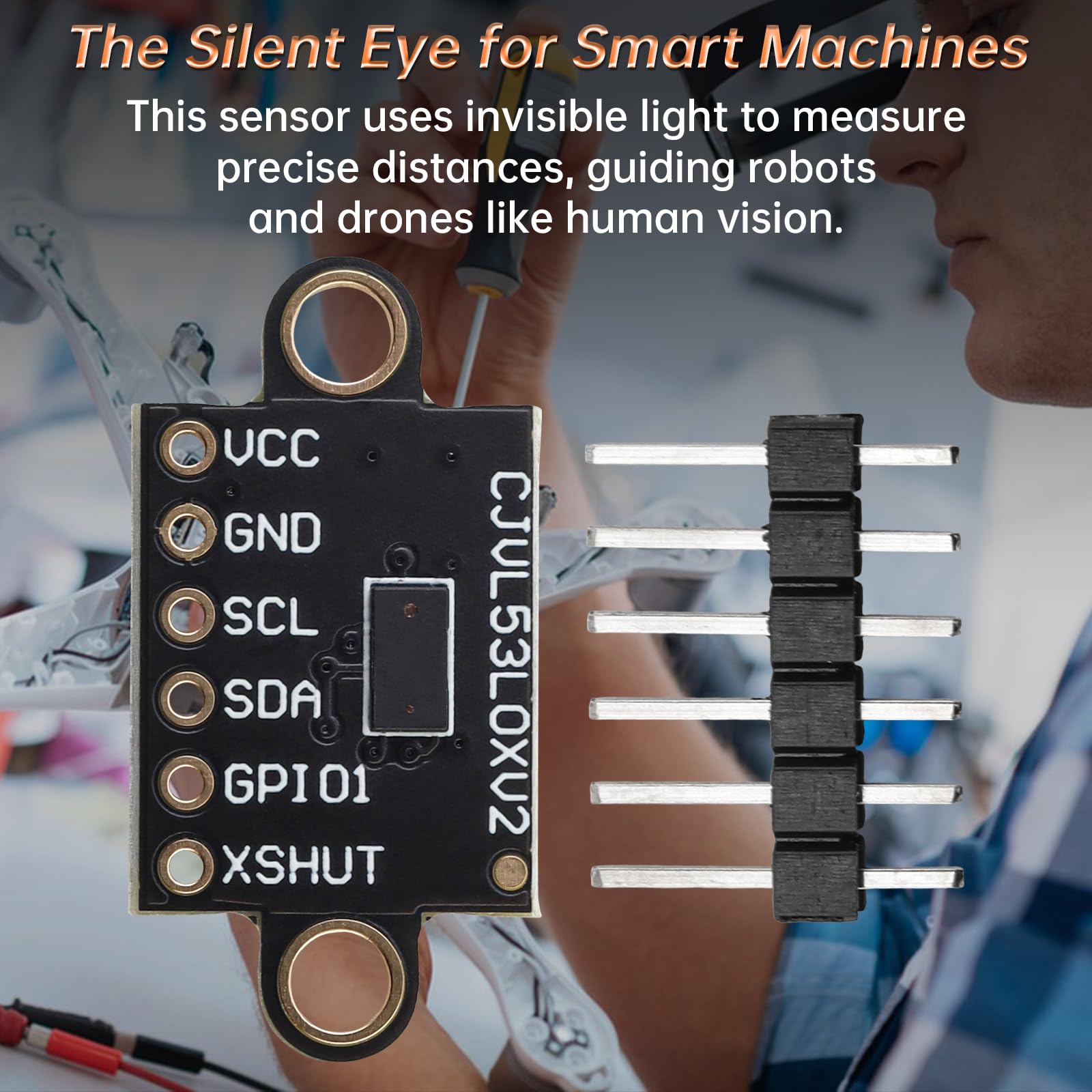

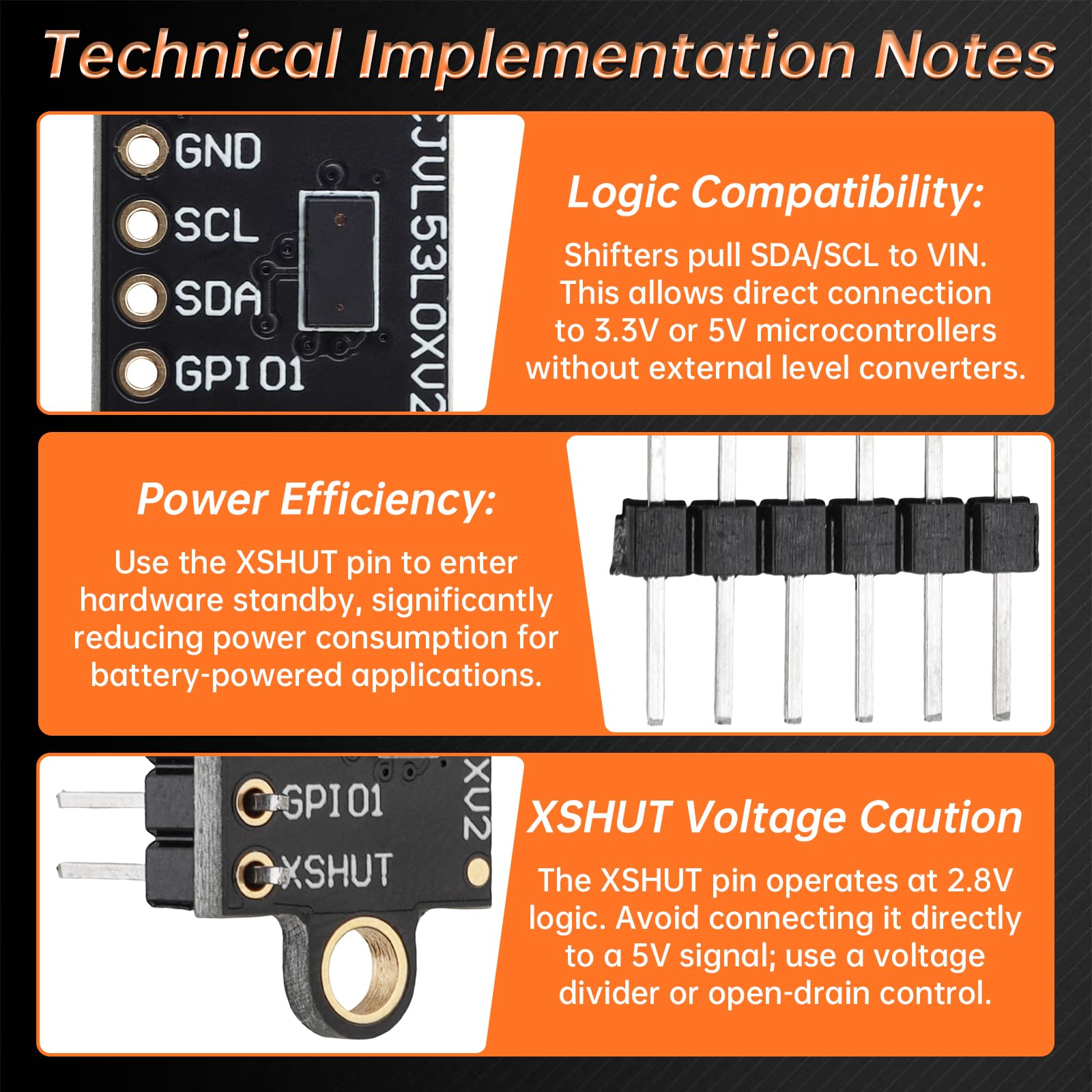

Parameter Information: Sensor Type: Ranging Sensor Output Mode: I2C IIC Working Voltage: 2.6-5.5V Communication Interface: I2C Sensoring Distance: 2m(Max) Emitter: 940nm Laser VCSEL Accuracy: +/- 3 percent in the best range, over +/- 10 percent in less optimal conditions. PIN Description: - VDD: Regulated 2.8 V output. Almost 150mA is available to power external components (If you want to bypass the internal regulator, you can instead use this pin as a 2.8 V input with VIN disconnected.). - VIN: This is the main 2.6V to 5.5V power supply connection. The SCL and SDA level shifters pull the I2C lines high to this level. - GND: The ground (0V) connection for your power supply. Your I2C control source must also share a common ground with this board. - SDA: Level shifted IIC data line: High is VIN, low is 0V. - SCL: Level shifted IIC clock line: High is VIN, low is 0 V. - XSHUT: This pin is an low active shutdown input, the board pulls it up to VDD to enable the sensor by default. Driving this pin low puts the sensor into hardware standby. This input is not level shifted. - GPIO1: Digital output. Interrupt output, open drain output. Place of Application: - Widely used in smart robots, drones and IoT market, sweeping robots, bathroom products, laptops and other products for gesture sensing or proximity detection, wall detection, cliff detection, collision detection, door presence detection or power switch monitoring. Package Include: 1 x VL53L0X Ranging Sensor Module 1 x 6 Row Pin

TEA4014081

2.1 inches

0.3 inches

3.1 inches

Good Condition
